Categories Coating Production Line Customized Automatic Coating Machine/Liquid Painting Line for Structural Parts

Categories Coating Production Line Customized Automatic Coating Machine/Liquid Painting Line for Structural Parts

Merknaam:	CHG
Modelnummer:	AC-04
MOQ:	1 set
Prijs:	100,000-300,000 USD
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen:	10 sets per jaar

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

China

Certificering:

CE, ISO

Coating:

Schilderen, schilderen

Substraat:

Staal

Type methode:

Automatisch

Maat:

Aangepast

Besturingseenheid:

PLC

Specificatie:

Aangepast

Handelsmerk:

CHG

Verpakking Details:

Varieert afhankelijk van het ontwerp

Productomschrijving

Carbon Steel Structural Parts Painting Production Line

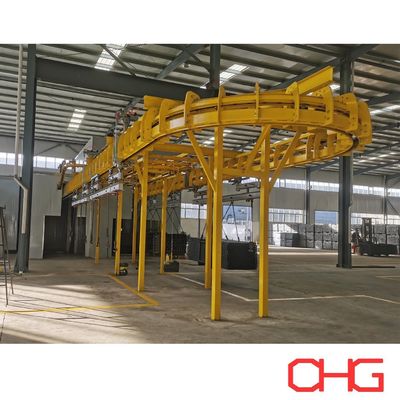

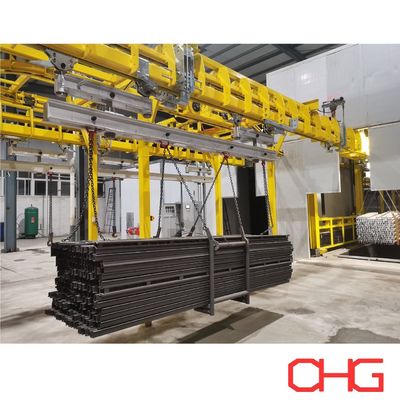

This production line is designed for coating carbon steel structural components, utilizing manual or inclined dipping methods for the coating application of pre-packaged frames. The system features a power-and-free overhead conveyor, with forklift-assisted manual loading and unloading for efficient material handling.

Production Process Flow:

Forklift-Assisted Loading – Workpieces are manually loaded onto the conveyor with forklift support.
Dipping & Painting (6 min) – The frames are fully immersed in the coating solution to achieve uniform paint coverage.
Drip-Off Stage (90 min) – Excess paint naturally drains off the coated surfaces to ensure an even film.

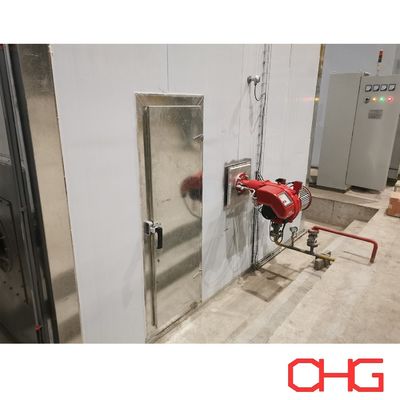

Drying Process (48 min at 60–80°C) – The coated parts are transferred into a controlled drying oven to cure the paint.
Natural Cooling (6 min) – The workpieces are allowed to cool down to stabilize the coating.
Forklift-Assisted Unloading – Finished products are manually removed from the line with forklift assistance.

Key Advantages:

Superior Coating Performance	Our dipping line ensures complete and even film coverage, providing exceptional corrosion resistance and long-term protection against harsh environmental conditions — extending the lifespan of your carbon steel structures.
Increased Production Efficiency	Equipped with an accumulation conveyor and automated handling features, the system supports continuous operation with minimal downtime, significantly boosting productivity and process stability.
Enhanced Cost-Effectiveness	The precise dipping mechanism, combined with energy-saving drying and curing ovens, maximizes coating utilization, minimizes paint waste, and lowers overall energy consumption.
Exceptional Finish Quality	Through advanced process control and strict quality inspection, the system consistently produces smooth, uniform coatings that enhance both the appearance and performance of your finished products.

Feel free to contact us to get your exclusive design proposal. We can also customize other types of coating production line based on product characteristics.
